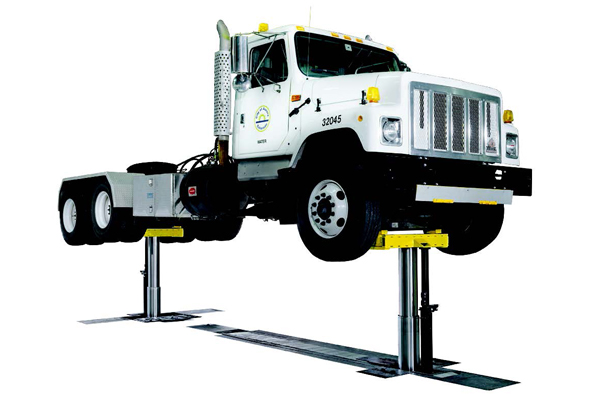

HD INGROUND

Rotary heavy-duty inground lifts are designed to increase productivity by providing an obstruction free shop and decades of service with minimum maintenance costs. Each lift offers the adjust-ability needed to service a wide variety of vehicles in a single bay. Whether fully hydraulic or electric hydraulic, two posts or three, numerous options are available to let you customize your lift for your exact needs. Let The Dependability Of Our Traditional In Ground Lift Do The Heavy Lifting!

  • 75,000 lbs.
  • Continuous Trench Design
  • Front And Rear Jacks
  • Patented Universal Saddle Adapter
  • Standard Front Pit Covers
Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specifications 10210C/P/Q R10210C/P/Q 703C/P/Q R703C/P/Q/RU703Q
Lifting Capacity 75,000 lbs. 75,000 lbs. 75,000 lbs. 75,000 lbs.
Lifting Capacity (front piston) 25,000 lbs. 25,000 lbs. 25,000 lbs. 25,000 lbs.
Lifting Capacity (center piston) N/A N/A 25,000 lbs. 25,000 lbs.
Lifting Capacity (rear piston) 50,000 lbs. 50,000 lbs. 25,000 lbs. 25,000 lbs.
Power Unit 10hp 10hp 10hp 10hp
Pressure 350 350 350 350
Oil Displacement 76.2 gal 79.3 gal 72.4 gal 78.5 gal
Rise (front piston) 66” 66” 66” 66”
Rise (center piston) N/A N/A 69” 69”
Rise (rear piston) 69” 69” 66” 66”
Piston Diameter (front piston) 10 5/8” 10 5/8” 10 5/8” 10 5/8”
Piston Diameter (center piston) N/A N/A 10 5/8” 10 5/8”
Piston Diameter (rear piston) 10 5/8” 10 5/8” 10 5/8” 10 5/8”
Std. Adapter Adj. (front piston) 19 1/8” – 44” 19 1/8” – 44” 19 1/8” – 44” 19 1/8” – 44”
Std. Adapter Adj. (center piston) N/A N/A 19 1/8” – 44” 19 1/8” – 44”
Std. Adapter Adj. (rear piston) 19 1/8” – 44” 19 1/8” – 44” 19 1/8” – 44” 19 1/8” – 44”
Drive-Thru/Over Clearance 4 1/4” recessed 4 1/4” recessed
