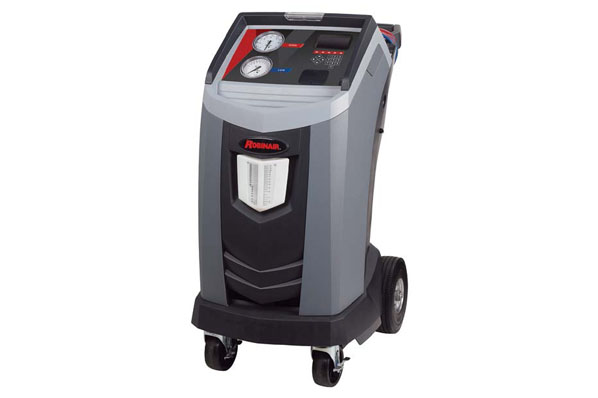

Model 34788NI & 34788NI-H

Recover, recycle, evacuate, leak-test and recharge R-134a vehicle A/C
systems. Features a larger graphical display, leak testing, automatic
refrigerant refill and automated oil drain/inject – putting A/C lubricant
back into the system. 34788NI also boasts an ability to add a printer and
refrigerant identifier. An optional refrigerant charge and oil capacities
database is available for North American market vehicles.

All of the same great features and functions included on the
34788NI, plus the added capability of servicing Hybrid vehicles that
use high voltage electric compressors. Recover, recycle, evacuate,
leak-test and recharge R-134a vehicle A/C systems. Features a
larger graphical display, leak testing, automatic refrigerant refill and
automated oil drain. An optional refrigerant charge and oil capacities
database is available for North American market vehicles.

Ask a Question About this Product
  • Features & Benefits

Model 34788NI Features & Benefits

  • Fully-Automatic Function: Program to recover, vacuum, leak test and charge without operating panel valves
  • Automatic Oil Drain: A display reminds you to empty the graduated container to show the amount of oil to replace
  • Oil Inject: Automatically inject oil back into the vehicle’s A/C systems
  • vehicles (Optional – not included with the machine)
  • A/C System Flush: Flushes a vehicle’s A/C system with refrigerant, eliminating any residual oil or other liquid. (Flushing adapters not included)
  • Save & print before and after service data: Allows the user to store before and after service information by vehicle and print this information to provide to a customer
  • Visual & Audible Alarm: Notifies the user when service is complete, or if a problem has occurred
  • Vacuum Leak Test: Monitors level after evacuation, informs of possible leak
  • Automatic Air Purge: Eliminates system-damaging air without monitoring gauges or opening valves
  • Automatic Refrigerant Refill: Maintains a user-selectable amount of refrigerant in an internal vessel and signals when it’s time to change supply tank, no monitoring required
  • Vacuum Feature: Defaults to 15 mins, programmable up to 99 mins. “Remaining time” is displayed
  • Display: Multilingual
  • Refrigerant Charging: Select a charge mode from high or low side, or use both sides
  • Refrigerant Management System: Displays refrigerant use and monitors remaining filter life. Prompts appear when 1/3 of filter life remains
  • Printer: (Optional – not included with the machine)
  • Refrigerant Identifier: (Optional – not included with the machine)

Model 34788NI-H Features & Benefits

  • Fully-Automatic Function: Program to recover, vacuum, leak test and charge without operating panel valves
  • Automatic Oil Drain: A display reminds you to empty the graduated container to show the amount of oil to replace
  • Refrigerant & Oil Database: A/C system capacities for North American market vehicles (Optional – not included with the machine)
  • A/C System Flush: Flushes a vehicle’s A/C system with refrigerant, eliminating any residual oil or other liquid. (Flushing adapters not included)
  • Save & print before and after service data: Allows the user to store before and after service information by vehicle and print this information to provide to a customer
  • Visual & Audible Alarm: Notifies the user when service is complete, or if a problem has occurred
  • Vacuum Leak Test: Monitors level after evacuation, informs of possible leak
  • Automatic Air Purge: Eliminates system-damaging air without monitoring gauges or opening valves
  • Automatic Refrigerant Refill: Maintains a user-selectable amount of refrigerant in an internal vessel and signals when it’s time to change supply tank, no monitoring required
  • Vacuum Feature: Defaults to 15 mins, programmable up to 99 mins. “Remaining time” is displayed
  • Display: Multilingual
  • Refrigerant Charging: Select a charge mode from high or low side, or use both sides
  • Refrigerant Management System: Displays refrigerant use and monitors remaining filter life. Prompts appear when 1/3 of filter life remains
  • Electric Vehicle: Capable of servicing high voltage electric compressor A/C systems
  • Printer: (Optional – not included with the machine)
  • Refrigerant Identifier: (Optional – not included
