Rotary Screw Air Compressors

The Champion Vision L Series of rotary screw lubricants offers the performance and reliability that you demand delivered by a simple and proven industrial design. The Vision Series allows you to customize a system that meets your compressed air needs while achieving minimal installation costs. With industrial grade components, the Vision Series is designed and built to last!

The Champion L Series compressor designs feature high-quality, sound-insulating enclosure panels and a low-noise, thermostatically-controlled, motor-driven fan. These components reduce the noise to whisper-quiet levels and eliminate the need for a separate compressor room, saving money on installation costs.

Saylor-Beall also offers a rotary screw air compressor is that it has one of the most reliable, high performance, low maintenance air ends in the industry. Their advanced rotor design features oversize radial thrust bearings and precision working rotors that provide virtually no wear. With less friction and less heat, the compressor runs cooler and the circulating fluid lasts longer. They offer protective devices such as a Class 20 solid state overload relay, high temperature and over pressure shut-down switches, and an anti-restart pressure switch that prevents starting while the air compressor is pressurized.

Ask a Question About this Product
  • Features & Benefits
  • Literature/Downloads

Champion L SERIES – L04-L05 (5-7.5 HP)

  • Belt drive, oil flooded, single stage rotary screw air compressor
  • RotorLub 4000 lubricant
  • Air-cooled only
  • Standard & optional condensate drains (with receiver tank selection)
  • CRN and ASME rated aftercooler
  • CSA labeled and approved electrical controls and wiring
  • CUL labeled electronics (including C-UL-US open industrial control panel)
  • Pilot microprocessor controller
  • IP54 electrical enclosure
  • Load/no load control and timed shutdown
  • Moisture separator (shipped loose)
  • Mounted and wired wye-delta starter
  • Optional ASME receiver tank (80, 120, 240 gallons)
  • Optional mounted non-cycling refrigerated dryer (with receiver tank selection)
  • Optional cold coalescing filter (with mounted dryer)
  • Optional three-way bypass valve (with receiver tank and mounted dryer)
  • Quiet enclosure
  • Spin-on oil filter and air/oil separator
  • Second pressure band control for lead/lag operation
  • Stainless steel piping (with receiver tank and mounted dryer)
  • TEFC main motor
  • Two-stage air filter
  • Voltage: 230V (single phase), 208 / 230 / 460 / 575V (3 phase)

*Dryer on AirStation package has separate electrical connection and voltage

Champion L Series – L07-L11 (10-15 HP)

  • Capacity: 26 to 64 cfm (60Hz)
    • .74 to 1.81 m3/min
  • Motor Size: 10 & 15 hp
  • Working Pressure Range: 75 to 190 psig
    • 2 to 13 bar
  • Cooling: Air
  • Voltages: 208V / 230V / 380 / 460V-60Hz
    • 380V-50Hz

Champion L Series – L15-L22 (20, 25-30 HP)

  • Capacity: 63 to 126 cfm (60Hz)
    • 78 to 3.57 m3/min
  • Motor Size: 20, 25 & 30 hp
  • Working Pressure Range: 75 to 190 psig
    • 2 to 13 bar
  • Cooling: Air
  • Voltages: 208V/ 230V / 460V (Tri Volt) 60Hz
    • 220V / 400V – 50Hz

Low Noise Level

  • Low Speed Air-End
  • Radial Fan
  • Noise Damper at Colling Air Inlet
  • Noise Levels:
    • L07-70 dB(A)
    • L11-70 dB(A)
    • L15-72 dB(A)
    • L18-73 dB(A)
    • L22-73 dB(A)

High Performing Integrated Airend

  • Spin-on oil filter
  • Spin-on oil separator
  • Thermostatic oil bypass valve
  • Fail Safe System on drive shaft
  • Reduced number of parts such as tubing and hoses
  • High reliability due to fewer points of leakage potential
  • Superior serviceability

Combination Cooler

  • Combi-cooler with compressed air connection
  • Easy to clean vertical design
  • Operation up to 113 °F ambient
  • Air discharge temperature 18-25 °F ambient

Superior Serviceability

  • Grouped service components
  • Easily removable canopy allows quick access to service items
  • Easy to clean combination cooler
  • Quick access to oil fill point
  • Clear view of oil level with oil level indicator
  • Minimized piping

Flexible Machine Configurations

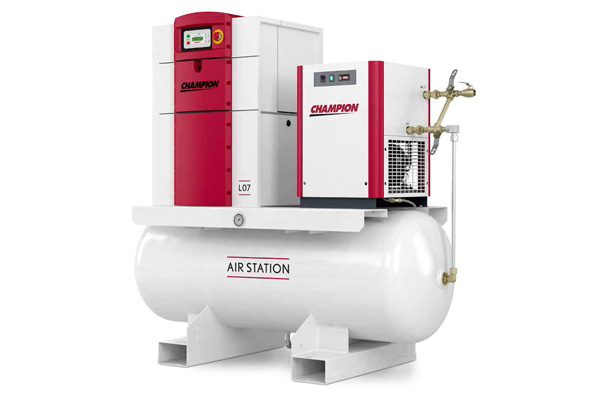

  • Base Mount or AirStation

Saylor-Beall

  • Oil flooded rotary screw air end deigned for 100% duty cycle
  • Direct drive on 15 to 50 horsepower models
  • Radiator type air/oil after cooler removes heat from discharge air and compressor oil
  • Oil separator tank with replacement element removes oil from compressed air and recycles into the compressor
  • Compressor control includes full-voltage magnetic starter with circuit breaker
  • Solenoid style unload control, full inlet modulation and timed unload control reduces operating costs
  • Instrumentation includes air pressure gauge and hour meter
  • All units are equipped with breakers and 110 volt control transformer

Champion L SERIES

L07–L22 SCREW COMPRESSOR, 60 HZ

MODEL NOMINAL PRESSURE

PSIG BAR

DRIVE MOTOR

HP KW

FAD1

CFM M3/MIN

NOISE LEVEL2

DB(A)

WEIGHT

LBS KG

DIMENSIONS L x W x H

IN.

L07 100 6.9

125 8.6

190 13

10 7 45 1.27

39 1.10

26 0.74

71 452 205 27 × 25 × 41
L11 100 6.9

125 8.6

190 13

15 11 63 1.78

58 1.64

44 1.25

71 483 219 27 × 25 × 41
L15 100 6.9

125 8.6

190 13

20 15 89 2.52

83 2.35

63 1.78

73 739 335 31 × 28 × 47
L18 100 6.9

125 8.6

190 13

25 18 111 3.14

102 2.89

80 2.27

74 796 361 31 × 28 × 47
L22 100 6.9

125 8.6

190 13

30 22 126 3.57

117 3.31

92 2.61

74 810 367 31 × 28 × 47

1) Data measured and stated in accordance with ISO1217, Ed. 4, Annex C & Annex E at the following conditions: Air Intake Pressure 1 bar A, Air Intake Temperature 20° C, Humidity 0 % (Dry)

2) Measured in free field conditions in accordance with ISO 2151, tolerance +/– 3 dB
