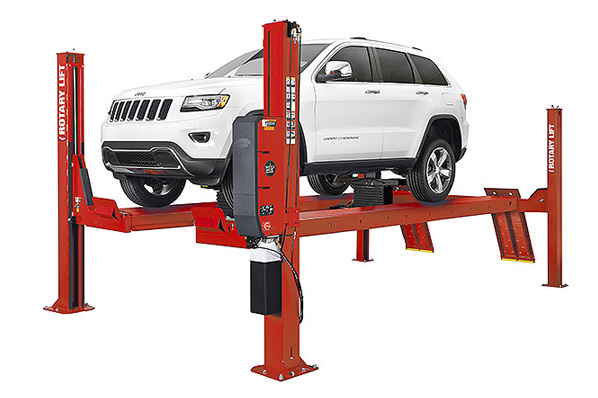

SMO14-SW

2X Faster rise and descent than standard 4-post lift*

Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, Rotary four-post auto lifts are the right choice for maximum productivity.

Shockwave™’s DC power system gives you lower cost and more reliable operation while using two standard Group 24 batteries**. Shockwave™’s built in battery charger uses 110v power, eliminating the need for expensive 20v wiring – an installation savings of 80% or more! Standard color of lifts are blue, red and black.

Features already included:

  • Open-end design
  • Cylinder located under the runway
  • Air Filter/Regulator/Lubricator
  • 20″ Single piece non-welded runway with tracks for rolling jacks
  • Dual function Sentinel Lock™ System
  • Adjustable latch bars
  • ALI Gold Certified (SMO14SW-X)

* Maximum wheelbase is based on a tire diameter of 29-1/2” (749mm)

** Narrow bay models available. Consult factory for min. bay size before ordering

*** Actual rise and descent times may vary depending on weight of the vehicle

† Length and / or width overall is 10 -1/2” longer with SHOCKWAVE power unit mounted on the side or front of column



Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specification SMO14 SMO14-L SMO14-EL
Max. Wheelbase 158″ 182″ 215″
Rise 73 3/4″ 73 3/4″ 73 3/4″
Length Overall 19′ 2″ 22′ 23′ 8″
Width Overall 11′ 8 1/2″ 11′ 8 1/2″ 11′ 8 1/2″
Inside of Columns 116 1/4″ 116 1/4″ 116 1/4″
Between Front and Rear Columns 170 3/4″ 194 3/4″ 227 3/4″
Height of Columns 9′ 1 1/16″ 9′ 1 1/16″ 9′ 1 1/16″
Width of Runways 20″ 20″ 20″
Height of Runways 7″ 7″ 7″
Width Between Runways 43″ 43″ 43″
Lifting Capacity 14,000 lbs. 14,000 lbs. 14,000 lbs.
Motor 5 HP 5 HP 5 HP
Voltage Single Phase 110V 110V 110V
Time of Full Rise 35 seconds 35 seconds 35 seconds
Time of Full Descent 18 seconds 18 seconds 18 seconds
Min. Bay Size 15’x23′ 15’x26′ 15’x28′
