2X Faster rise and descent than standard 4-post lift*

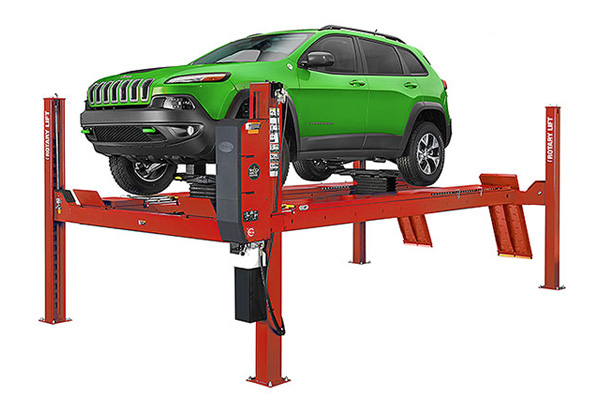

Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, Rotary four-post auto lifts are the right choice for maximum productivity.
Shockwave™’s DC power system gives you lower cost and more reliable operation while using two standard Group 24 batteries**. Shockwave™’s built in battery charger uses 110v power, eliminating the need for expensive 20v wiring – an installation savings of 80% or more!
Features already included:
Specification | AR14 | AR14-L | AR14-EL |
Max Wheelbase | 158″ | 182″ | 215″ |
Max Two Wheel Align | 152 1/4″ | 176 1/4″ | 209″ |
Max Four Wheel Align | 142 1/2″ | 164 3/4″ | 164 3/4″ |
Min Four Wheel Align | 66 3/4″ | 89″ | 89″ |
Rise / Floor to top of runway | 78 3/4″ | 78 3/4″ | 78 3/4″ |
Length Overall | 18′ 10″ | 20′ 10″ | 23′ 7″ |
Width Overall | 10′ 11 3/4″ | 10′ 11 3/4″ | 10′ 11 3/4″ |
Inside of Columns | 116 1/4″ | 116 1/4″ | 116 1/4″ |
Between Front and Rear Columns | 171 1/4″ | 195 1/4″ | 2285 1/4″ |
Height of Columns | 7′ 6 1/2″ | 7′ 6 1/2″ | 7′ 6 1/2″ |
Width of Runways | 20″ | 20″ | 20″ |
Height of Runways | 7″ | 7″ | 7″ |
Width Between Runways | 43″ – 46″ | 43″ – 46″ | 43″ – 46″ |
Front of Runway to Center of Radius Gauge | Adj. 18″-24″ | Adj. 18″-24″ | Adj. 18″-24″ |
Lifting Capacity | 14,000 lbs. | 14,000 lbs. | 14,000 lbs. |
Motor | 5 HP | 5 HP | 5 HP |
Voltage Single Phase | 110v | 110v | 110v |
Time of Full Rise | 35 seconds | 35 seconds | 35 seconds |
Time of Descent | 18 seconds | 18 seconds | 18 seconds |
Min. Bay Size | 15’x23′ | 15’x26′ | 15’x28′ |
