AR14

Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, Rotary four-post auto lifts are the right choice for maximum productivity.

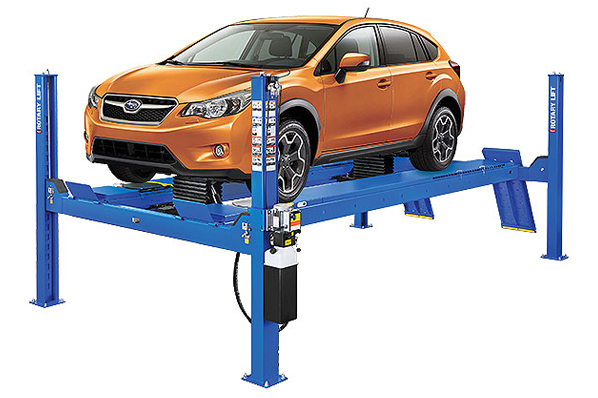

AR14 Closed Front Alignment Rack Four Post Lift

  • Cylinder Located Under The Runway
  • Dual Function Sentinel Lock™ System
  • Air Filter/Regulator/Lubricator
  • Internat Airline
  • (2) 7,000 lbs. Capacity Rolling Jacks
  • Stainless Steel Radius Gauges
  • Rollback Bar
  • Rear Slip Plates
  • Compatible With The New Technology Alignment Systems On The Market Today

ALI Gold Certified (AR14-X)

Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specification AR14 AR14-L AR14-EL
Max Wheelbase 158″ 182″ 215″
Max Two Wheel Align 152 1/4″ 176 1/4″ 209″
Max Four Wheel Align 142 1/2″ 164 3/4″ 164 3/4″
Min Four Wheel Align 66 3/4″ 89″ 89″
Rise / Floor to top of runway 78 3/4″ 78 3/4″ 78 3/4″
Length Overall 18′ 10″ 20′ 10″ 23′ 7″
Width Overall 10′ 11 3/4″ 10′ 11 3/4″ 10′ 11 3/4″
Inside of Columns 116 1/4″ 116 1/4″ 116 1/4″
Between Front and Rear Columns 171 1/4″ 195 1/4″ 228 1/4″
Height of Columns 7′ 6 1/2″ 7′ 6 1/2″ 7′ 6 1/2″
Width of Runways 20″ 20″ 20″
Height of Runways 7″ 7″ 7″
Width Between Runways 43″-46″ 43″-46″ 43″-46″
Front of Runway to Center of Radius Gauge Adj. 18″-24″ Adj. 18″-24″ Adj. 18″-24″
Lifting Capacity 14,000 lbs. 14,000 lbs. 14,000 lbs.
Motor 2 HP 2 HP 2 HP
Voltage Single Phase 208v-230v 208v-230v 208v-230v
Time of Full Rise 65 seconds 65 seconds 65 seconds
Min. Bay Size 15’x23′ 15’x26′ 15’x28′
