ARO14

Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, Rotary four-post auto lifts are the right choice for maximum productivity.

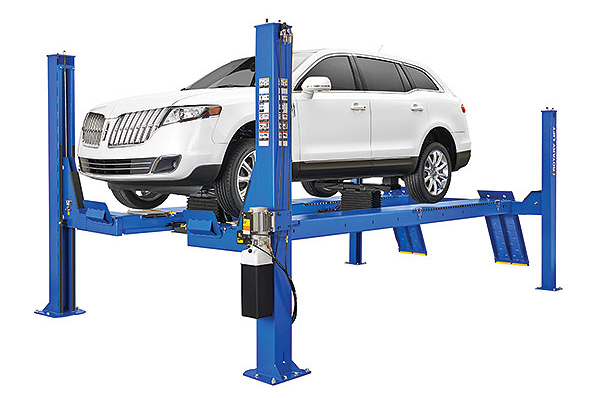

ARO14 Open Front Alignment Rack Four Post Lift –

  • Open-End Design
  • Dual Function Sentinel Lock™ System
  • Air Filter/Regulator/Lubricator
  • Single Piece Non-Welded Runway With Tracks For Rolling Jacks
  • Internal Airline
  • (2) 7,000 lbs. Capacity Rolling Jacks
  • Stainless Steel Radius Gauges
  • Rear Slip Plates
  • Compatible With The New Technology Alignment Systems On The Market Today
  • ALI Gold Certified (ARO14-X)
Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specification ARO14 ARO14-L ARO14-EL
Max. Wheelbase 158″ 182″ 215″
Max. Two Wheel Align 152 1/4″ 176 1/4″ 209″
Max Four Wheel Align 142 1/2″ 164 3/4″ 164 3/4″
Min. Four Wheel Align 66 3/4″ 89″ 89″
Rise 78 3/4″ 78 3/4″ 78 3/4″
Length Overall 19′ 1″ 21′ 1″ 23′ 10″
Width Overall 11′ 8 1/2″ 11′ 8 1/2″ 11′ 8 1/2″
Inside of Columns 116 1/4″ 116 1/4″ 116 1/4″
Between Front and Rear Columns 170 3/4″ 194 3/4″ 227 3/4″
Height of Columns 9′ 1 1/16″ 9′ 1 1/16″ 9′ 1 1/16″
Width of Runways 20″ 20″ 20″
Height of Runways 7″ 7″ 7″
Width Between Runways 43″ 43″ 43″
Front of Runway to Center of Radius Gauge Adj. 18″-24″ Adj. 18″-24″ Adj. 18″-24″
Lifting Capacity 14,000 lbs. 14,000 lbs. 14,000 lbs.
Motor 2 HP 2 HP 2 HP
Voltage Single Phase 208v-230v 208v-230v 208v-230v
Time of Full Rise 65 seconds 65 seconds 65 seconds
Min. Bay Size 15’x23′ 15’x26′ 15’x28′
