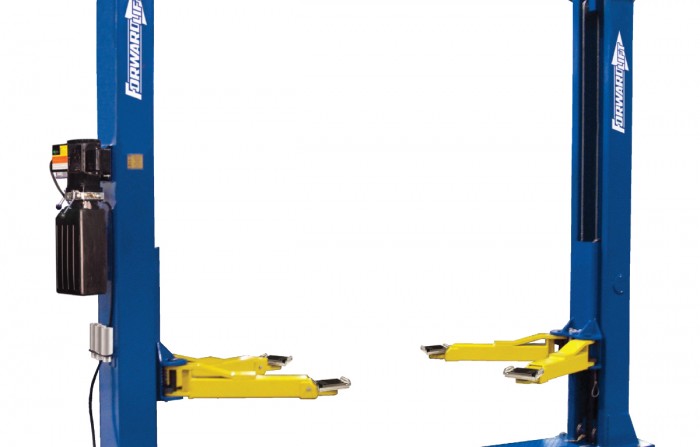

Forward 2 Post Lift BP9

The BP9 9,000 lbs. capacity lift is perfect for customers who need a two-post lift and have low ceilings. The BP9’s overall height is 111 1/4 inches tall. That means it will fit, even if you have 10 foot ceilings. The BP stands for base plate indicated by the steel plate that run between the two columns of the lift. This plate protects the cables that would normally run overhead on any other two-post lift. This allows for shorter columns, hence the lower ceiling height requirement.

This is a commercial grade car lift and should not be confused with any other cheap two-post vehicle lift. This is a Forward Lift® so it has been engineered to perform and built to last!

Additional Features:

  • Dual hydraulic cylinders
  • Low-Profile Threaded Adapters
  • Carriage latch system – engages every 3″
  • Secondary lock system includes a spring actuated slack chain locking device
  • Adapter extensions included
  • Powder coat, oven baked finish
Ask a Question About this Product
  • Features & Benefits
  • Literature/Downloads
Specifications BP9113000BL
Total Capacity 9,000 lbs. (4082kg)
Overall Height 111-1/4″ (2826mm)
Overall Width 138-1/2″ (3518mm)
Rise With Extensions 80-1/2″ (2045mm)
Rise Without Extensions 72″ (1829mm)
Drive Through Clearance 97-1/4″ (2470mm)
Width Inside Columns 111″ (2819mm)
Arm Reach (Min./Max.) 30″/46-1/4″ (762mm/1174mm)
Minimum Adapter Height 4-1/2″” (114mm)
Drive-Over Height 1-1/2″ (38mm)
Voltage/Amps 208/230, 20 Amps
Motor 2 HP/1Ø* (38mm)
Minimum Ceiling Height 113″ (2870mm)
*Optional 3-Phase available.
