Nussbaum Mid-Rise Lift Sprinter7

Nussbaum Mid-Rise Lift 7,000lb Capacity:

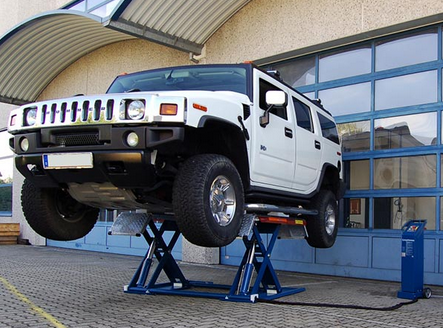

The mobile hydraulic lift Sprinter 7 with a 40″ rise and a load capacity of 7,000 lbs is the perfect portable lift for the car repair shop, tire shop, or even at your own home. This lift is ideal for tire and brake work, body work, tire service, painting and more. The Sprinter 7 can be moved with the mobile set in seconds by a user without mechanical assistance and is immediately ready for operation without having to be connected or anchored. With its fast lifting times, small space requirement, 360° access to the vehicle, length-adjustable mountings and flat design, it will find its place in any car workshop. The Sprinter 7 lifts a wide range of vehicles, from mini cars to low-slung sports cars, off-road vehicles and heavy SUVs thanks to its robust steel construction and high-quality hydraulic system.

Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads

Sprinter 7 Mid-Rise Lift Features:

• Load capacity: 7,000 lbs
• Effective Lifting height of 39 inch
• Fully free and mobile and ready to go in no time at all: no external connections required
• Extremely compact and flat design: Drive-on height of only 4 inch
• Length-adjustable mounting – drive-on ramps can be locked and unlocked by one-hand operation
• 360° access
• Hot-dip galvanized anti-slip platforms are protected against corrosion over a long period of time
• Included in delivery: Set of 4 polymer pads (50x150x340 mm)
• Guaranteed quality: The lift is completely pre-assembled at the factory and tested for full functionality
• Developed and manufactured in Germany

Tech Specs:

• Capacity: 7,000 lb
• Platform length min: 55 – 79 inch
• Lifting height: 39 inch
• Platform width: 17.75 inch
• Drive on height: 4 inch
• Overall width min: 75.25 inch
• Power supply (V/ph): 208/230 / 1
• Motor power: 2.0 hp
