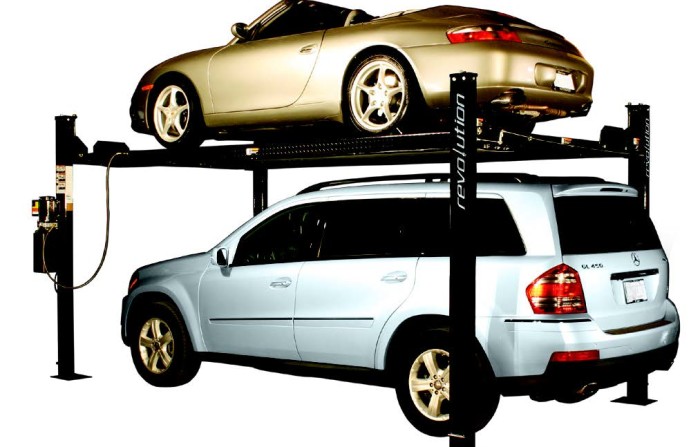

The RFP8 is a powerful four post lift that is the perfect tool to help increase the amount of parking space without having to resort to costly construction. You can double your parking space instantly, by using the RFP8 parking lift in your shop or home.
Not sure if the lift will fit in your garage? Click on the link below to check your measurements.
|Capacity||8,000 lbs. (3629kg)|
|Overall length with approach ramps||207-1/2” (5270mm)|
|Overall length without approach ramps||175 -1/2” (4458mm)|
|Overall width w/o motor||103 -1/2” (2629mm)|
|Approach ramp Length||32” (813mm)|
|Runway width||18 -1/2” (470mm)|
|Runway length||169 -1/2” (4305mm)|
|Runway height||4 -1/2” (114mm)|
|Height of columns||81 -1/2” (2070mm)|
|Clearance between columns||94” (2388mm)|
|Clearance between runways||38” (965mm)|
|Outside runway to outside runway||75” (1905mm)|
|Clearance under runway||68” (1727mm)|
|Motor specs||110VAC, 1HP|
