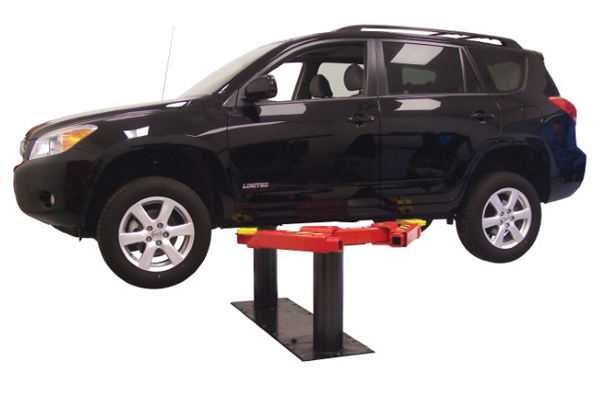

Rotary Smart Lift SL210

From every angle, we’ve designed Smartlift to help you get the most from your service facility – maximum productivity, minimum downtime and a clean shop appearance. That’s why our customers have chosen Smartlift over 60,000 times!

Our Legendary Smartlift Design With Features & Serviceability You Won’t Find Anywhere Else!

  • Low profile TRIO arms for ease of entry in and out of the bay
  • Fully enclosed in an environmentally friendly polymer containment
  • Smartguard™ plungers for years of trouble free operation
  • ALI Gold Certified (SL210X)

Every Smartlift includes:

  • TRIO ™ arms with your choice of adapter configurations
  • Easy Access™ cylinders which allow all routine cylinder maintenance to be done at floor level, reducing downtime and preserving bay revenue
  • Exclusive Smartguard™ plungers for time tested durability and performance
  • Exclusive locking system which features a patented polymer and stainless air cylinder for high performance and longevity of lift operation
Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specification SL210-FA SL210-RA SL210-TA
Adapters Flip Up Round Truck
Rise 75 7/8″ – 81 3/8″ 75 7/8″ – 81 3/8″ 75 7/8″ – 81 3/8″
Width Overall 108 1/4″ 108 1/4″ 108 1/4″
Drive-Thru Clearance 88″ 88″ 88″
Reach (min.) 21 1/4″ 19 1/4″ 19 1/4″
Reach (max) 44 5/8″ 41 1/4″ 41 1/4″
Reach (overall arm min.) 58 1/4″ 54 1/2″ 54 1/2″
Reach (overall arm max.) 105″ 99″ 99
Min. Adapter Height 4 7/8″ 4 1/4″ 4 1/4″
Low Step Height 7″ N/A N/A
High Step Height 10 1/2″ 5 3/8″ 5 3/8″
Lifting Capacity Overall 10,000 lbs. 10,000 lbs. 10,000 lbs.
Lifting Capacity (per arm) 2,500 lbs. 2,500 lbs. 2,500 lbs.
Guide Plunger Diameter 8 1/2″ 8 1/2″ 8 1/2″
Voltage Single Phase 208v – 230v 208v – 230v 208v – 230v
Time of Full Rise/Decent 53 secs. / 24 secs. 53 secs. / 24 secs. 57 secs. / 29 secs.
Min. Bay Size 11’x24′ 11’x24′ 11’x24′
