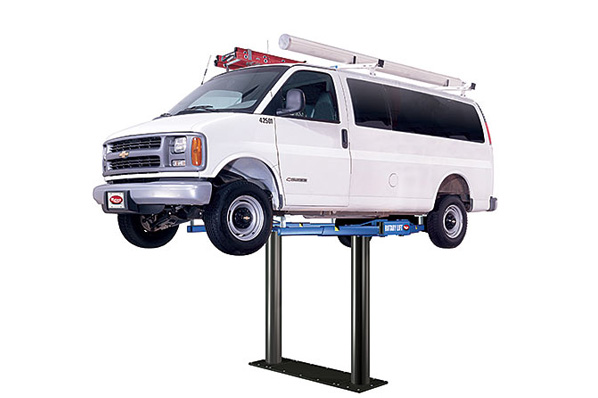

Rotary Smart Lift SL212

For nearly 20 years, customers have chosen Smartlift to help them get the most from their service facility – maximum productivity, minimum downtime and a clean shop appearance.

Every 12,000 lb. Smartlift includes:

  • Lightweight aluminum truck adapters with stackable adapters
  • Patented Easy Access™ cylinders which allow all routine cylinder maintenance to be done at floor level, reducing downtime and preserving bay revenue
  • Exclusive Smartguard™ plungers for durability and time-tested performance
  • Exclusive locking system featuring a Patented polymer and stainless air cylinder for trouble-free lock operation

Our legendary Smartlift designed for light and medium duty trucks and vans.

  • Lightweight aluminum truck adapters with stackable inserts
  • Fully enclosed in an environmentally friendly polymer containment
  • Smartguard™ plungers for years of trouble free operation
  • ALI third party certified (SL212X)
Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specification SL212-TA
Adapters Truck
Rise 76 3/8″ – 83 7/8″
Drive-Thru Clearance 88″
Reach (min.) 31 1/2″
Reach (max.) 48″
Reach (overall arm min.) 77″
Reach (overall arm max.) 110″
Min. Adapter Height 5 3/8″
Low Step Height N/A
High Step Height 7 7/8″
Lifting Capacity Overall 12,000 lbs.
Lifting Capacity (per arm) 3,000 lbs.
Guide Plunger Diameter 8 1/2″
Voltage Single Phase 208v-230v
Time of Full Rise/Decent 57 secs. / 29 secs.
Min. Bay Size 12’x26′
