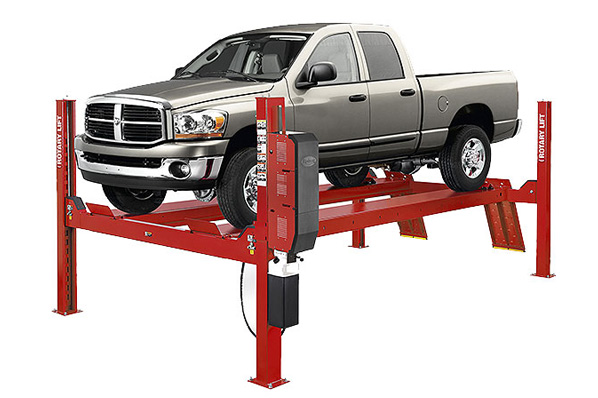

SM14-SW

2X Faster rise and descent than standard 4-post lift*

Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, Rotary four-post auto lifts are the right choice for maximum productivity.

Shockwave™’s DC power system gives you lower cost and more reliable operation while using two standard Group 24 batteries**. Shockwave™’s built in battery charger uses 110v power, eliminating the need for expensive 20v wiring – an installation savings of 80% or more!

Features already included:

  • Cylinder located under the runway
  • Air Filter/Regulator/Lubricator
  • 20″ Single piece non-welded runway with tracks for rolling jacks
  • Dual function Sentinel Lock™ System
  • Adjustable latch bars
  • 5” higher rise to 78.75”
  • Louvered ramps with polymer rollers
  • Hammer tone textured paint finish
  • ALI Gold Certified (SM14SW-X)
Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specification SM14SW SM14SW-L SM14SW-EL
Max Wheelbase 158″ 182″ 215″
Rise 78 3/4″
Length Overall 18′ 10″ 20′ 10″ 23′ 7″
Width Overall 10′ 11 3/4″
Inside of Columns 116 1/4″
Between Front and Rear Columns 171 1/4″ 195 1/4″ 228 1/4″
Height of Columns 7′ 6 1/2″
Width of Runways 20″
Height of Runways 7″
Width Between Runways 43″-46″
Lifting Capacity 14,000 lbs.
Motor 5 HP
Batteries Not Included 2 Standard Group 24
Voltage Single Phase 110v
Time of Full Rise 35 seconds
Time of Descent 18 seconds
Min. Bay Size 15’x23′ 15’x26′ 15’x28′
