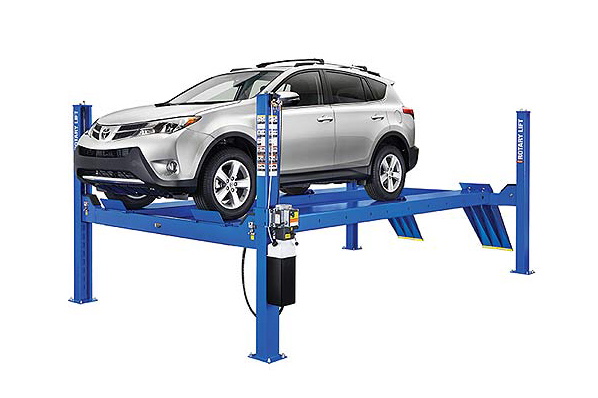

SM14

Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, Rotary four-post auto lifts are the right choice for maximum productivity.

Features already included:

  • Cylinder located under the runway
  • Air Filter/Regulator/Lubricator
  • 20” Single piece non-welded runway with tracks for rolling jacks
  • Dual function Sentinal Lock™ System
  • Adjustable latch bars

SM14 Four Post Closed Front Lift –

  • 5” higher rise to 78.75”
  • Louvered ramps with polymer rollers
  • Powder Coated Hammer Tone paint finish
  • Adjustable latch bars
  • Single piece non-welded runway with tracks for rolling jacks
  • ALI Gold Certified (SM14-X)
Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specification SM14 SM14-L SM14-EL
Max Wheelbase* 158″ 182″ 215″
Rise 78 3/4″
Length Overall 18′ 10″ 20′ 10″ 23′ 7″
Width Overall 10′ 11 3/4″
Inside of Columns 116 1/4″
Between Front and Rear Columns 171 1/4″ 195 1/4″ 228 1/4″
Height of Columns 7′ 6 1/2″
Width of Runways 20″
Height of Runways 7″
Width Between Runways 43″-46″
Lifting Capacity 14,000 lbs.
Motor 2 HP
Voltage Single Phase 208v-230v
Time of Full Rise 65 seconds
Min. Bay Size 15’x23′ 15’x26′ 15’x28′
