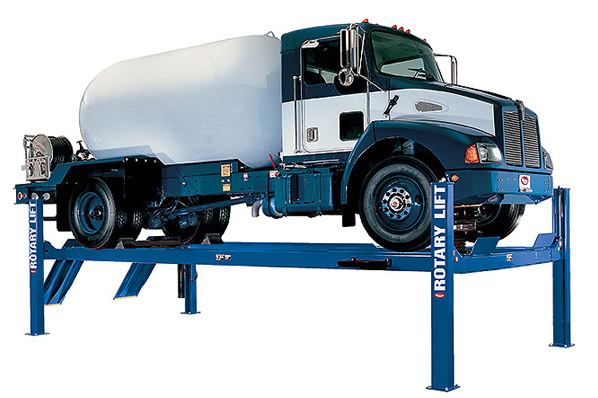

SM18

Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, Rotary four-post auto lifts are the right choice for maximum productivity.

The SM18 Offers The Versatility You Need To Service Light and Medium Duty Commercial Vehicles With Ease!

  • Cylinder located under the runway
  • Dual function Sentinel Lock™ System
  • Air Filter/Regulator/Lubricator
  • Adjustable latch bars
  • Single piece non-welded runway with tracks for rolling jacks
  • ALI Gold Certified (SM18LO-X)
Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specification SM18-L SM18-EL
Max. Wheelbase 194″ 230″
Rise 68″ 68″
Length Overall 22′ 11 3/16″ 25′ 11 3/16″
Width Overall 11′ 5 3/4″ 11′ 5 3/4″
Inside of Columns 121 1/2″ 121 1/2″
Between Columns 212″ 248″
Height of Columns 6′ 5 3/4″ 6′ 5 3/4″
Width of Runways 22″ 22″
Height of Runways 7 1/2″ 7 1/2″
Width Between Runways (max.) 46″ 46″
Lifting Capacity 18,000 lbs. 18,000 lbs.
Motor 2 HP 2 HP
Voltage Single Phase 208v-230v 208v-230v
Time of Full Rise 100 seconds 100 seconds
Min. Bay Size 16’x27′ 16’x30′
