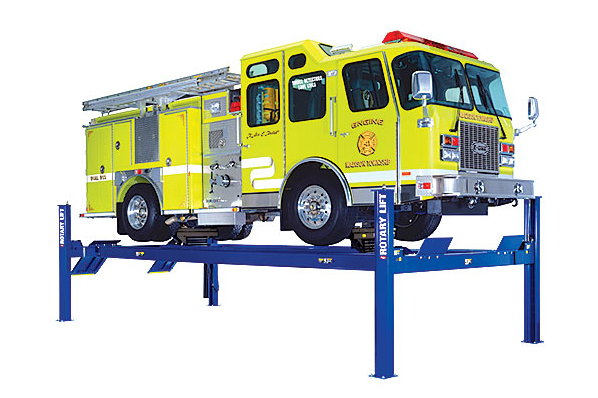

SM30

Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, Rotary four-post auto lifts are the right choice for maximum productivity.

  • Cylinder located under the runway
  • Dual function Sentinel Lock™ System
  • Internal airline
  • Adjustable latch bars
  • ALI Gold Certified (SM30N0-X)
Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specification SM30 SM30-L SM30-EL
Max. Wheelbase 235″ 271″ 307″
Rise 68″ 68″ 68″
Length Overall 25′ 8 1/8″ 28′ 8 1/8″ 31′ 8 1/8″
Width Overall 12′ 4 13/16″ 12′ 4 13/16″ 12′ 4 13/16″
Inside of Columns 132″ 132″ 132″
Between Columns 249″ 285″ 321″
Height of Columns 7′ 3/4″ 7′ 3/4″ 7′ 3/4″
Width of Runways 24″ 24″ 24″
Height of Runways 8 3/8″ 8 3/8″ 8 3/8″
Width Between Runways (min.) 41″ 41″ 41″
Width Between Runways (max.) 48″ 48″ 48″
Lifting Capacity 30,000 lbs. 30,000 lbs. 30,000 lbs.
Motor 4 HP 4 HP 4 HP
Voltage Single Phase 208v-230v 208v-230v 208v-230v
Time of Full Rise 105 seconds 105 seconds 105 seconds
Min. Bay Size 16’x30′ 16’x33′ 16’x36′
