SMO14

Versatility: it’s the standard to which Rotary Lift’s four-post lifts are built. These lifts handle cars, vans, trucks – even light and medium duty commercial vehicles with ease. If you service a wide variety of vehicles, Rotary four-post auto lifts are the right choice for maximum productivity.

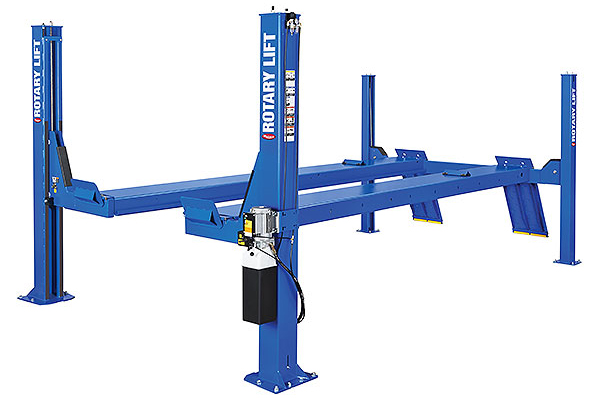

SMO14 Four Post Open Front Lift

  • Open-end design
  • Cylinder located under the runway
  • Dual function Sentinel Lock™ System
  • Air Filter/Regulator/Lubricator
  • Adjustable latch bars
  • Single piece non-welded runway with tracks for rolling jacks
  • ALI Gold Certified (SMO14-X)
Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specification SMO14 SMO14-L SMO14-EL
Max. Wheelbase 158″ 182″ 215″
Rise 78 3/4″ 78 3/4″ 78 3/4″
Length Overall 19′ 1″ 21′ 1″ 23′ 10″
Width Overall 11′ 8 1/2″ 11′ 8 1/2″ 11′ 8 1/2″
Inside of Columns 116 1/4″ 116 1/4″ 116 1/4″
Between Front and Rear Columns 170 3/4″ 194 3/4″ 227 3/4″
Height of Columns 9′ 1 1/16″ 9′ 1 1/16″ 9′ 1 1/16″
Width of Runways 20″ 20″ 20″
Height of Runways 7″ 7″ 7″
Width Between Runways 43″ 43″ 43″
Lifting Capacity 14,000 lbs. 14,000 lbs. 14,000 lbs.
Motor 2 HP 2 HP 2 HP
Voltage Single Phase 208v-230v 208v-230v 208v-230v
Time of Full Rise 65 seconds 65 seconds 65 seconds
Min. Bay Size 15’x23′ 15’x26′ 15’x28′
