SPO10

For over 30 years, Rotary Lift has built quality into every two-post they’ve designed. The SPO10 has proven this time and time again. With features like the original single piece “double S” shaped column, true asymmetric columns, three position flip-up adapters, available 3-stage arms with thread-up or truck adapters and extended height models, the SPO10 delivers everything your shop needs.

Trust The Industry Standard Symmetrical 10,000 lb. Two Post!

  • True Symmetrical column design
  • Customizable with your choice of arms and adapters
  • Extended height models available for added versatility
  • ALI Gold Certified (SPO10X)



Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specification SPO10-FA SPO10-TA SPO10-RA

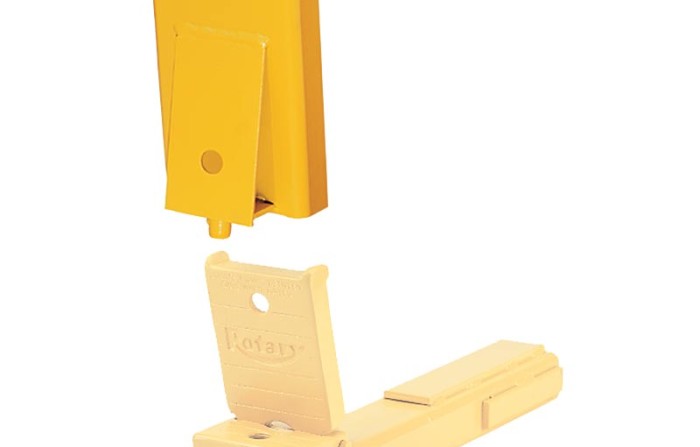

Adapters Flip Up Truck Round
Capacity 10,000 lbs. 10,000 lbs. 10,000 lbs.
Rise 78 1/4″ 80 1/4″ 76 7/8″
Overall Height 11′ 8 1/2″ 11′ 8 1/2″ 11′ 8 1/2″
Required Ceiling Height 12′
Overall Width 11′ 5 1/2″ 11′ 5 1/2″ 11′ 5 1/2″
Drive-Thru Width 8′ 6 1/2″ 8′ 6 1/2″ 8′ 6 1/2″
Front Arm Min/Max 31″-54″ 27 1/2″-59″ 27 1/2″-59″
Rear Arm Min/Max 31″-54″ 27 1/2″-59″ 27 1/2″-59″
Min. Adapter Height 4 3/4″ 4 3/4″ 3 5/8″
Motor 2 HP 2 HP 2 HP
Voltage 208v-230v 208v-230v 208v-230v
Time of Full Rise/Decent 45 secs./40 secs. 45 secs./40 secs. 45 secs./40 secs.
Min. Bay Size 12’x24′ 12’x24′ 12’x24′
