SPO15

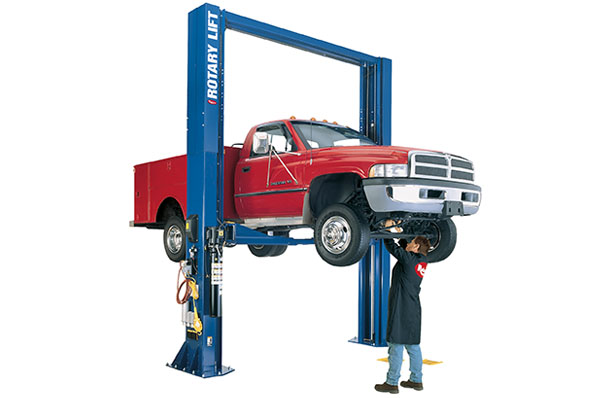

For decades, Rotary has been the recognized leader in vehicle service lifts.  This legendary reputation has set the standard for quality, durability, reliability and attention to safety throughout the automotive service market. Trust The Industry Standard Symmetrical 15,000 lb. Two Post Lift.

  • Overhead cables insures proper equalization of the carriages, while providing an unobstructed floor
  • Stackable adapters make contact to the vehicle quick and easy
  • The locking system engages every 4” and is fully accessible for maintenance
  • ALI Gold Certified (SPO15X)
Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specifications SPO15-TA SPO15LC-TA
Adapters Truck Truck
Rise 76 7/8″ – 88 7/8″ 76 7/8″ – 88 7/8″
Overall Height 15′ – 16′ 6″ 13′ 6″ – 14′ 6″
Required Ceiling Height 15′ 1″ 13′ 7″
Overall Width 12′ 11″ 12′ 11″
Drive-Thru Width 8′ – 9 3/4″ 8′ – 9 3/4″
Inside Columns 120″ 120″
Front Arm Min/Max 37 1/2″ – 62″ 37 1/2″ – 62″
Rear Arm Min/Max 37 1/2″ – 62″ 37 1/2″ – 62″
Min. Adapter Height 5 3/4″ 5 3/4″
Motor / Voltage 1Ø 2 HP / 208v-230v 2 HP / 208v-230v
Time of Full Rise 85 seconds 85 seconds
Min. Bay Size 15′ x 30′ 15′ x 30
