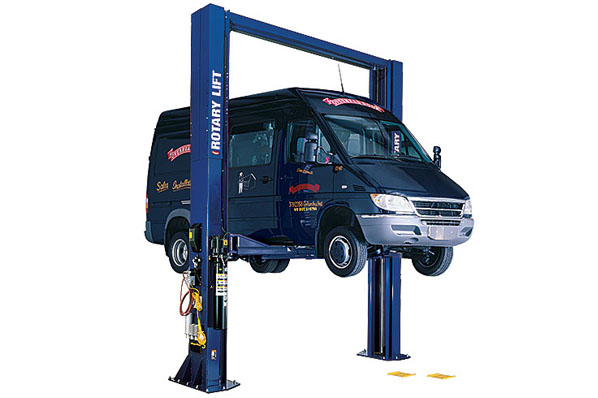

SPO18

All of Rotary’s award winning light duty features can be found on our heavy duty two-post lifts. With available capacities up to 18,000 pounds and options like low ceiling models and dual controls, you can rest assured we have the lift for your job.

  • Double S” Column Design
  • Thread Up Adapters
  • Comes With (6) Additional Adapters For An Additional 10″ Of Reach
  • ALI Gold Certified (SPO18X
Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Specification SPO18 SPO18-LC
Adapters Truck Truck
Capacity 18,000 lbs. 18,000 lbs.
Rise 89 1/2″ 89 1/2″
Overall Height 15′-16′ 6″ 13′ 6″-14′ 6″
Required Ceiling Height 15′ 1″ 13′ 7″
Overall Width 12′ 11″ 12′ 11″
Drive-Thru Width 8′ 9 3/4″ 8′ 9 3/4″
Front Arm Min/Max 37 1/2″-62″ 37 1/2″-62″
Rear Arm Min/Max 37 1/2″-62″ 37 1/2″-62″
Min. Adapter Height 5 3/4″ 5 3/4″
Motor 2 HP 2 HP
Voltage 208v-230v 208v-230v
Time of Full Rise 85 seconds 85 seconds
Min. Bay Size 15’x30′ 15’x30′
