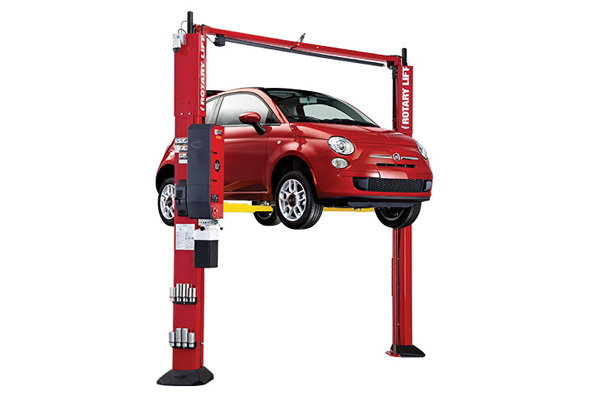

SPOA10-SW

TRIO™ Series asymmetric lifts are three arm configurations in one low-profile arm design. With lifting capabilities of 10,000 lbs., Rotary engineers have created a patented two-piece, three-stage asymmetrical arm that accommodates a wider range of vehicles.

Versatility in matching the right adapters on a single lift is a win for any service bay and adapters are now interchangeable with three vehicle contact options. Technicians can choose the best adapter set for each vehicle to be serviced all on the same arm.

The world’s best-selling asymmetrical lift is updated to service a broader range of vehicles – with one innovative arm design! Plus Shockwave Equipped!

  • 2X Faster Rise And Decent
  • DC Power With Onboard 110v Charger
  • Spotline™ Motion Activated Laser
  • Customize With Your Choice Of Adapters
  • ALI Gold Certified (SPOA10X)



Ask a Question About this Product
  • Features & Benefits
  • Videos
  • Literature/Downloads
Models SPOA10SW-TRIO-FA SPOA10SW-TRIO-TA SPOA10SW-TRIO-RA SPOA10SW Conventional
Arm Type

Trio™ 3-Stage Design



Trio™ 3-Stage Design



Trio™ 3-Stage Design



Conventional 2-Stage Design

Adapters Flip Up Truck Round Standard Flip-Up
Capacity 10,000 lbs. 10,000 lbs. 10,000 lbs. 10,000 lbs.
Rise 78″ 82 1/2″ 73 1/8″ 78 1/4″
Overall Height 11′ 8 1/2″ 11′ 8 1/2″ 11′ 8 1/2″ 11′ 8 1/2″
Overall Width 11′ 5 3/8″ 11′ 5 3/8″ 11′ 5 3/8″ 11′ 5 3/8″
Drive-Thru 95 1/4″ 95 1/4″ 95 1/4″ 95 1/4″
Front Arm Min/Max 21 3/4″- 43 1/2″ 20 1/2″- 40 3/4″ 20 1/2″- 40 3/4″ 24″ – 40 3/4″
Rear Arm Min/Max 37″ – 61″ 34 1/2″-58 1/4″ 34 1/2″-58 1/4″” 40 1/4″ – 61″
Min. Adapter Height 4 3/4″ 4 1/8″ 3 31/32″ 4 3/4″
Max. Adapter Height N/A 5 3/8″ 5 1/4″ N/A
Min. Bay Size 12’x24′ 12’x24′ 12’x24′ 12’x24′
Ceiling Height Min. 12′ 12′ 12′ 12′
Motor 5 HP 5 HP 5 HP 5 HP
Voltage 110v 110v 110v 110v
Time of Full Rise/Decent 25 secs./19 secs. 25 secs./19 secs. 25 secs./19 secs. 25 secs./19 secs.
