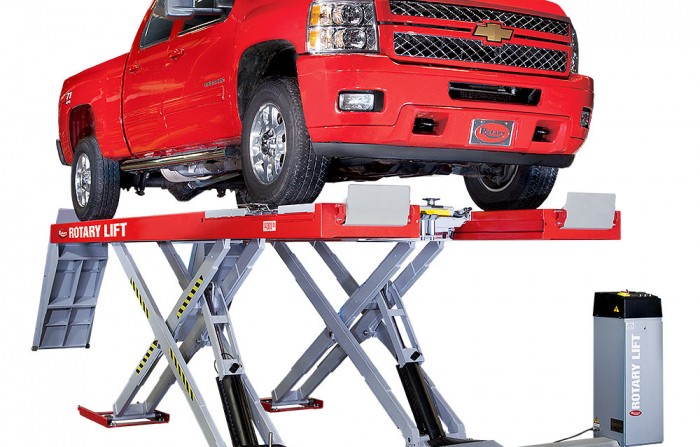

Rotary Scissor Lift XA14

Rotary’s new 14,000-pound alignment-ready scissor offers an impressive 193-inch max wheel base. The lift’s front radius gauge area has an extended, lengthened recess where multiple plates can be configured for vehicles with longer wheelbases. This configuration can handle vehicles with wheel bases as little as 85.5 inch to larger trucks and vehicles up to 198 inches.

Its open scissor design saves space and provides greater technician access with true vertical lifting. The Open Front and Rear Design creates space-saving working clearance through the entire middle of lift with open access points for easy movement – front, rear and side to side walk through – for accessing multi-bay projects and tool boxes and when making wheel alignment adjustments.

Get more in that bay and do more with this lift. Couple this lift with our new alignment system which requires little to no room in an alignment bay and you’ll get more than just alignments done. Start thinking outside the box and start thinking Rotary alignment systems.

  • Two Adjustable 7,000 lbs. Rolling Jacks Included
  • Two Turning Radius Gauges Included
  • Folding Ramps With Rear Wheel Chocks
  • Air Actuated Rear Slip Plate Locks
  • Intuitive Console Controls
  • Recessed / Surface Mount Options
  • 40″ Between Platforms for More Access
Ask a Question About this Product
  • Features & Benefits
  • Literature/Downloads



Specification XA14
Capacity 14,000 lbs. (6350kg)
Maximum Rise* 72-3/4″ (1848mm) Surface Mounted
Lowered Height 10-3/4″ (275mm)
Overall Length 277″ (7035mm)
Overall Width 91″ (2310mm)
Runway Width 25-1/2″ (648mm)
Width Between Platforms 40″ (1015mm)
Runway Length 216″ (5486mm)
Max. Wheelbase 198″ (5038mm)
Max. Two Wheel Alignment Max Four Wheel Alignment Min. Four Wheel Alignment 195″ (4953mm) 193″ (4902mm) 85-1/2″ (2172mm)
Motor/Voltage 5 hp / 230 volt / Single Phase
Time of Full Rise 77 seconds
Lowering Time 47 sceonds
Compressed Air Connection 85-110 psi
Recommended Bay Size 14′ x 27′ (4.27m x 8.23m)
* Rise measures floor to top of runway at full stroke.
